Grid mode for Content

FAQ
, , ,
1

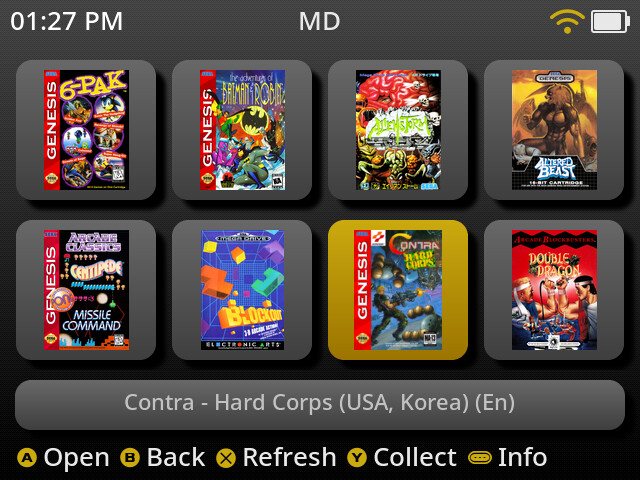

With the release of Silly Goose we’ve added the ability to enable displaying content in a grid mode. For example:

image640×480 127 KB

By default this feature is disabled to enable it there are 3 requirements.

  1. You will need to be using a theme that supports grid mode or create a theme that supports grid mode.

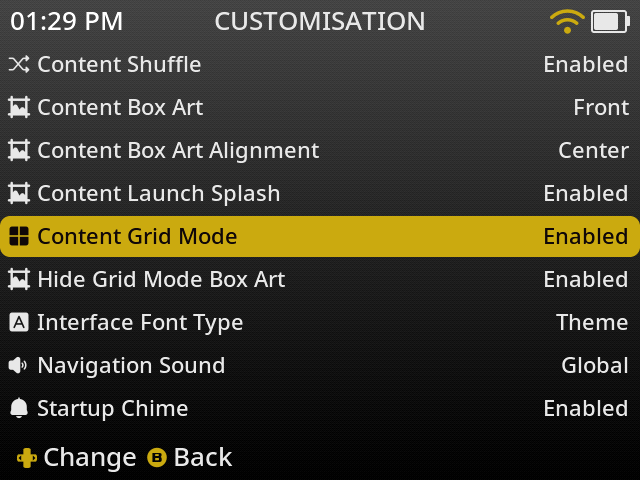

  2. Under Configuration -> Customisation set Content Grid Mode to Enabled

image640×480 35.7 KB

  1. Scrape grid art for your content. This will need to live in

/MUOS/info/catalogue/{SystemFolder}/grid

The size of the grid images will depend on which theme you’re using. The example theme MustardOS-Grid-Alt uses the following dimensions for each resolution:

Resolution Max Width Max Height
640x480 120 120
720x480 120 120
720x576 140 140
720x720 140 140
1024x768 204 204
1280x720 204 204

This theme can be downloaded from the muOS website

or using the theme downloader on the device. If you do not see it in the theme downloader you can hit X to refresh the available themes in theme downloader.
