What is Rockbox?
Rockbox is a free, open-source firmware replacement for digital audio players (DAPs), offering an alternative to the original operating system. It’s designed to be highly customizable, with features like advanced equalizers, themes, and support for various file formats.
Note:
You will need to setIdle Input Display Timeoutsetting on muOS toDisabled, otherwise audio will turn off after 2 minutes.
Install
- Download latest
Rockbox.muxapphere. - Copy
Rockbox.muxapptoSD1 (mmc)/ARCHIVE. - Go to
Applicationsand launchArchive Manager. - Select
[SD1-APP] Rockboxand let it extract. - Exit and you should see
RockboxinApplications.
Please read the README.md on github for info on themes and database settings
Controls
In Menu:
| Button | Action |
|---|---|
| DPAD UP | Move UP |
| DPAD DOWN | Move DOWN |
| DPAD LEFT | Go Back |
| DPAD RIGHT/A | Enter/Accept |
| Hold A | Context Menu |
| Press B | Main Menu |
| Press X | WPS/Resume Playing |
| Press Y | Pause/Stop Playing |
| L1 | Lock/Hold Input |
| R1 | Shuffle/Repeat Menu |
| L2+R2 | Shutdown (Exit) |

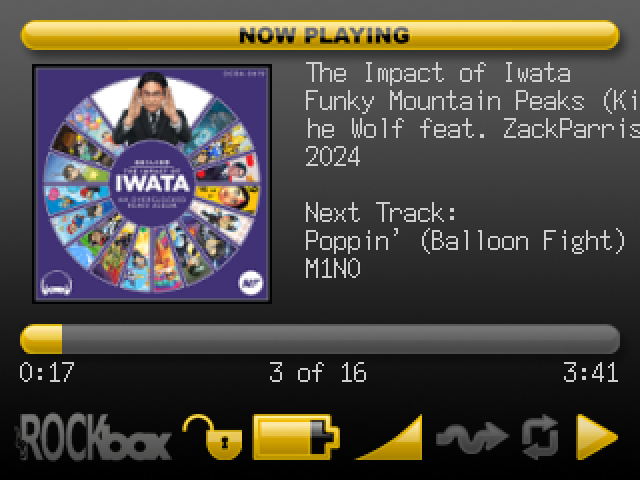

In WPS (What’s Playing Screen):
Note:
Volume controls are separate from system volume.
| Button | Action |
|---|---|
| DPAD UP | Volume UP |
| DPAD DOWN | Volume Down |
| DPAD LEFT | Restart Song/Previous Song |
| Hold DPAD LEFT | Rewind |
| DPAD RIGHT | Next Song |
| Hold DPAD RIGHT | Fast-Forward |
| Press A | Play Pause |
| Hold A | Pause and Main Menu |
| Press B | Main Menu |
| Press X | File Browser |
| Hold X | Context Menu |
| Press Y | Playlist |
| Hold Y | Track Info |
| L1 | Lock/Hold Input |
| R1 | Shuffle/Repeat Menu |
| Hold R1 | Pitch Menu |
Note:
For detailed info on plugin controls please check the wiki section.
